Product Description
OVERVIEW
WS-64 is a new generation of ground-to-ground tactical weapon system used for battlefield fire support and deep strike. As a single-stage solid missile, WS-64 flies with whole-course guidance in lower atmosphere. The system can achieve precision strike and has excellent penetration capability. WS-64 rocket weapon system adopts combined INS / GNSS guidance, radar homing terminal guidance and semi-armor-piercing warhead to precisely attack the warships. Time for launch preparation and withdrawal is short, so that the system’s survivability has been greatly enhanced. It can conduct a high maneuver above the target area and attack vertically with optimal damage.
MAJOR FEATURES
- Strong Penetration Damage
- Long Range
- High Accuracy
- Quick Combat Reaction
- Maneuver Trajectory
- Vertical Striking
SYSTEM COMPOSITION

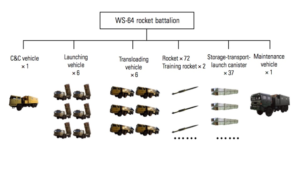

WS-64 rocket battalion is the basic battle unit, and its organization is designed for independent combat.
TECHNICAL SPECIFICATIONS
| Range | 125-275 km |
| Accuracy | CEP ≤ 10 m |
| Take-off Mass | 1,480 kg |
| Length of Rocket | 7,200 mm |
| Diameter of Rocket | Φ410 mm |
| Guidance Mode | SINS / GNSS + Radar homing guidance |
| Weight of Warhead | 200 kg |
| Type of Warhead | Semi-armor-piercing warhead |
| Loading Quantity | 6 per vehicle |
| Launch Mode | Vehicular canister-type oblique launch |
