¥760,000.00
Product Description

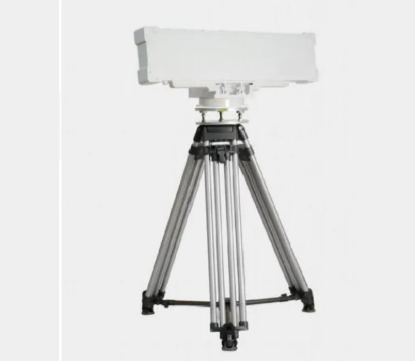

08A radar is a pulse system three-dimensional radar with azimuth machine scanning and pitch phase scanning. It has two working modes: low altitude monitoring and integrated air ground monitoring. In the integrated air ground monitoring mode, low altitude aircraft and people and vehicles on the ground can be found at the same time. The radar can accurately detect the spatial position of the target, and can be cascaded with photoelectric system, jamming system, laser weapon, navigation decoy system and other equipment. It is suitable for the security of airports.
| SPECS | 08A | ||
| Working Waveband | X | ||
| Radiation System | Linear Frequency-Modulation Pulse System | ||
| Scanning Style | Azimuth Machanical Scanning and Pitch Phase Scanning | ||
| Detecting Range |
Low Altitude Monitoring |
（DJI Phantom 4） | 5km |
| Integrated Air Ground Monitoring |
（DJI Phantom 4） | 5km | |
| Personnel | 8km | ||
| Vehicles | 10km | ||
| Pitch Range | 0°～30° | ||
| Dectecting Precision | Distance | ≤8m | |
| Azimuthal | ≤0.6° | ||
| Pitch | ≤0.6° | ||
| Target Capacity | ≥200 | ||
| Weight | ≤35kg | ||
| Dimensions | ≤1020×310×410（mm） | ||
| Total Power Consumption | ≤220W | ||
