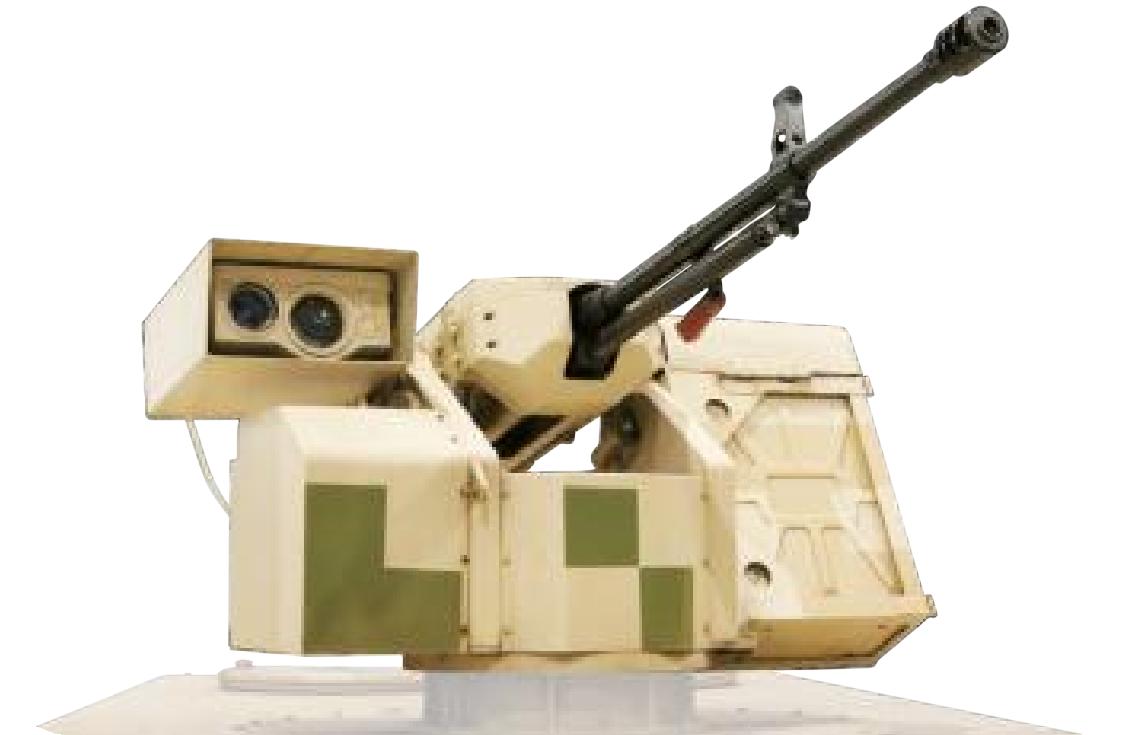

CS/LK3: Remotely Operated Heavy Machine Gun Turret (12.7mm)

OVERVIEW & CHARACTERISTIC

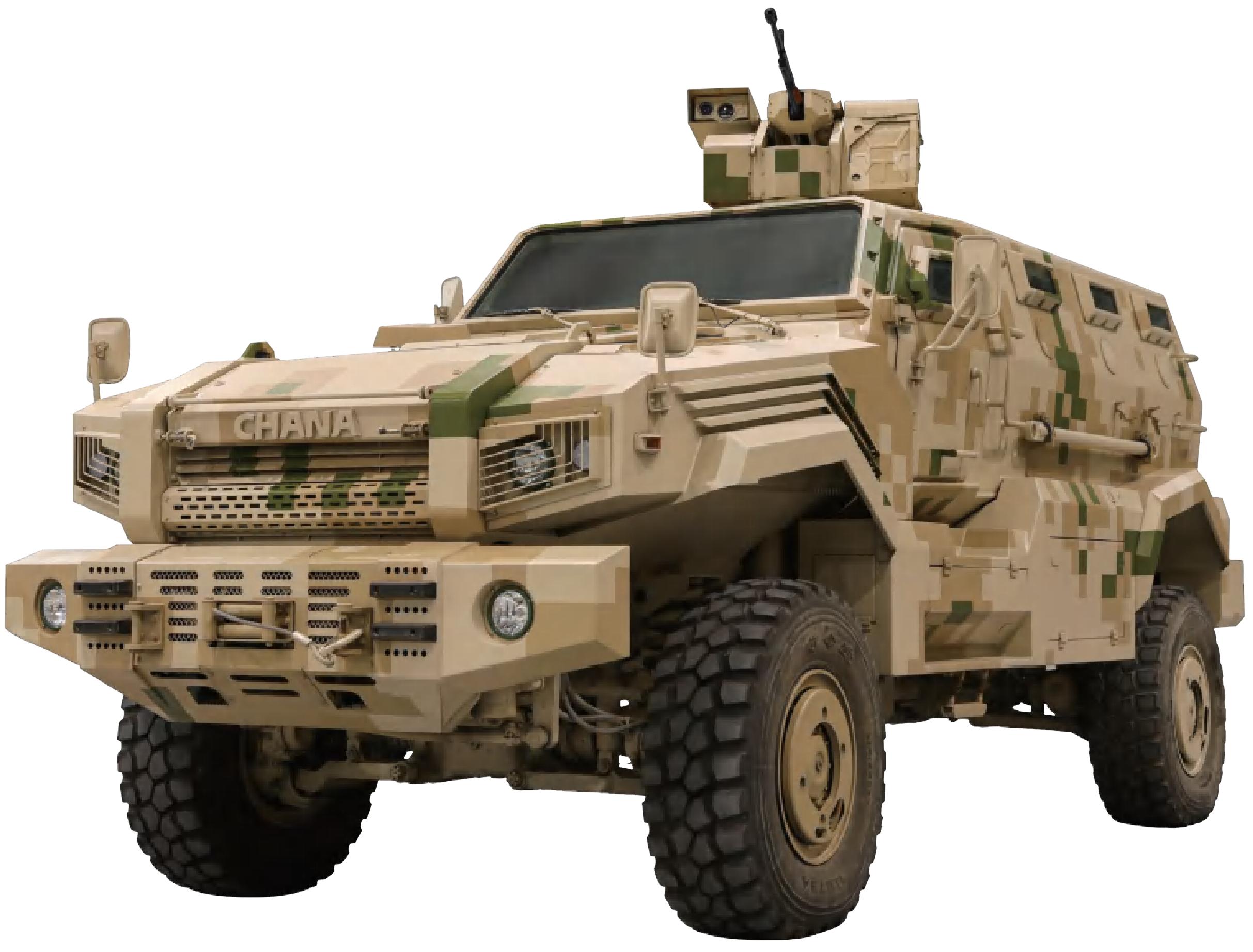

The CS/LK3 is a remotely controlled weapon station (RCWS)
equipped with a 12.7mm heavy machine gun. Designed for
various vehicles and fixed installations, it provides mobile or
stationary firepower.
PERFORMANCE & FEATURES
• Vehicle or Fixed Mount: Adaptable for various platforms.
• Remote Operation: Enhances crew protection by keeping operators out of harm’s way.
• Multiple Safety Features: Ensures safe operation and prevents
accidental firing.
• Target Locking: Allows restricted firing zones for safety.
• Combining a wide field of view with long identification range
allows for early detection and quick response to emerging
threats.

MAIN SPECIFICATIONS
• Size (L×W×H): ≤63×37.4×23.62in.
(1.600 × 950 × 600mm)
• Weight (with ammunition): ≤507.06lbs (230kg)
≤440.921bs (200kg, the top of vehicle)
• Weapon: 12.7mm vehicular machine gun
• Maximum capacity: 120 rounds
• Elevation range: ≤-10°
≥ 60°
• Traverse range: 360°
• Sight Field of View: 3.2° to 30°
• Identification range: ≥1.500m
• System response time: ≤7s
• Operating voltage: 26±6 VDC
• Operating temperature: -20°C~+55°C
• MTBF(01): ≥100hours
